Classification
Details
Mounted vehicle
HD 5 ton Long Body

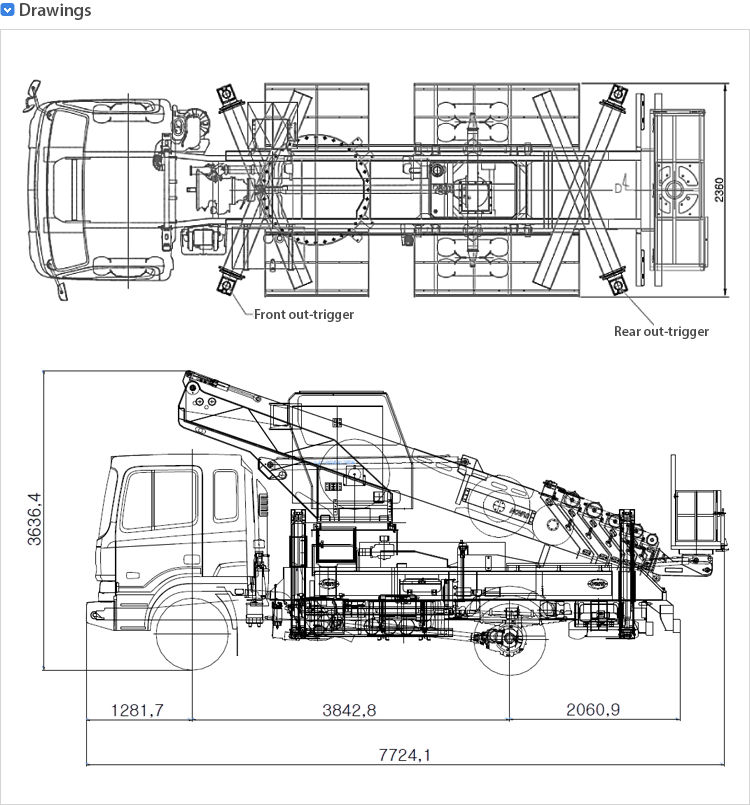

Equipment (H×L×W) 3,500 × 7,600 × 2,300mm

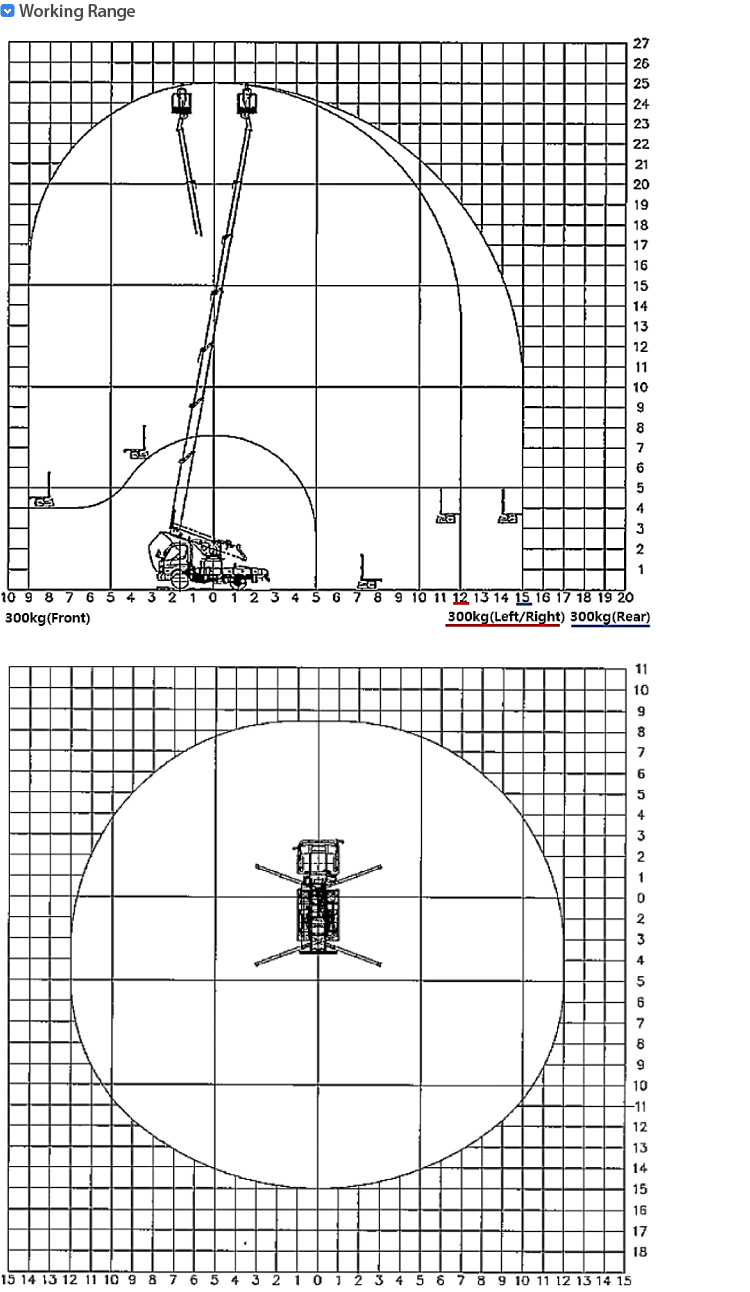

Workable height 35m
Boom steps 7 - Step Interlocking
Riding platform (H×L×W) 1,150 × 1,700(3,000) × 600(1,100)mm
Outrigger (Front×Rear) 7,200 × 7,200mm
Basic spec.

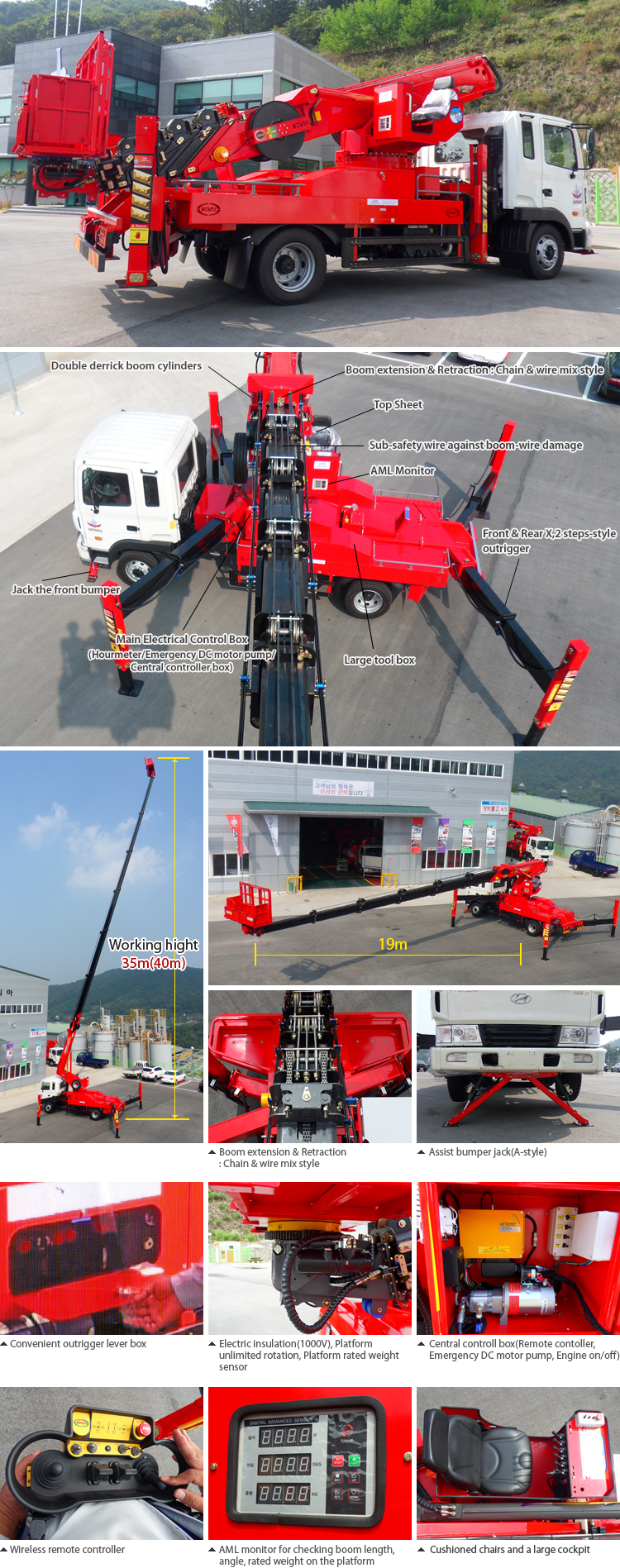

Cabin(Driver's Seat), Wireless Remote Control, Electric Reel, Oil Cooler, Work Light,
Overturning-preventing sensor, Boom Shaking-prevention Brake,
Basic Tool Set, Load Sensing Equipment (AML)

Optional spec. Air Reel, Bump Outrigger, Auxiliary winch, AC Power Inverter
The above specifications are subject to change without notice.
