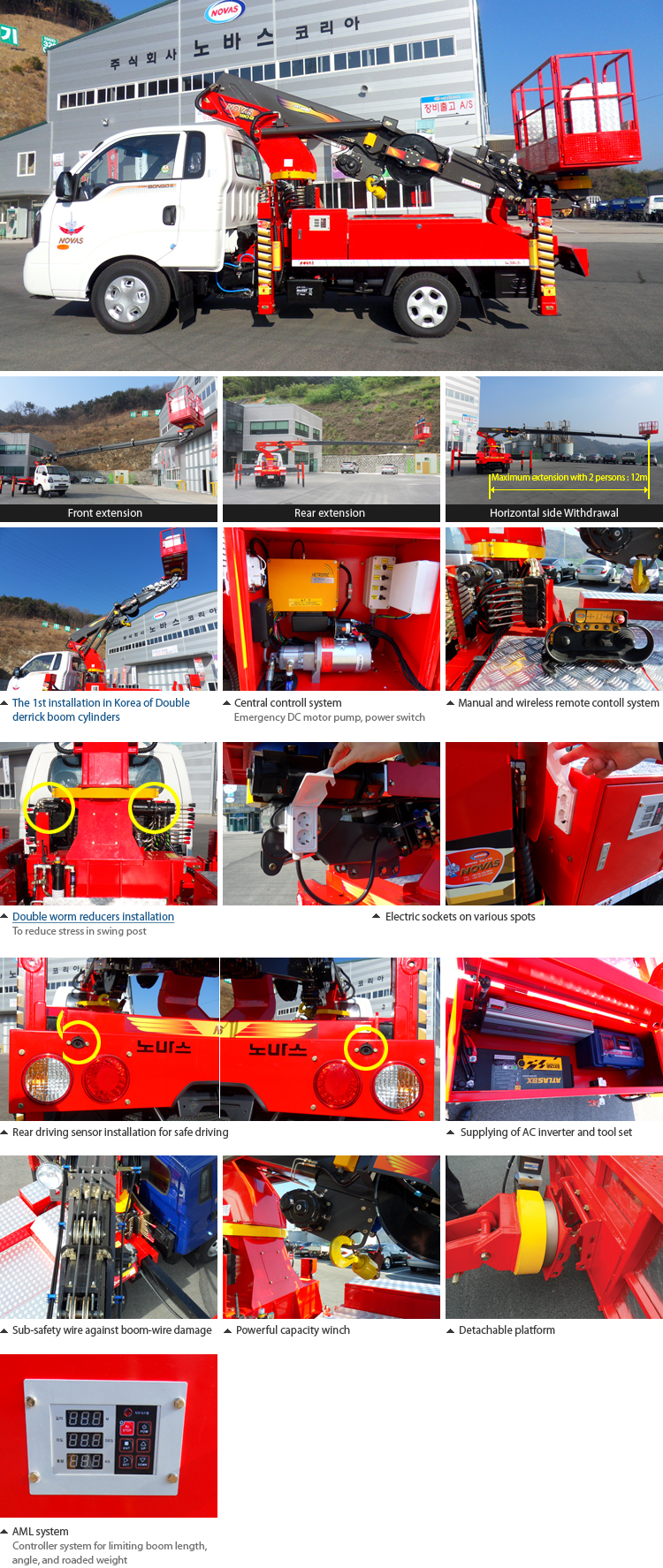

| Description
|
Units |
Specification |
|
Rated
load
|
Kgf |
2 persons or 200kg |
Chassis
|
Ton |
Kia BonggoIII 1ton |

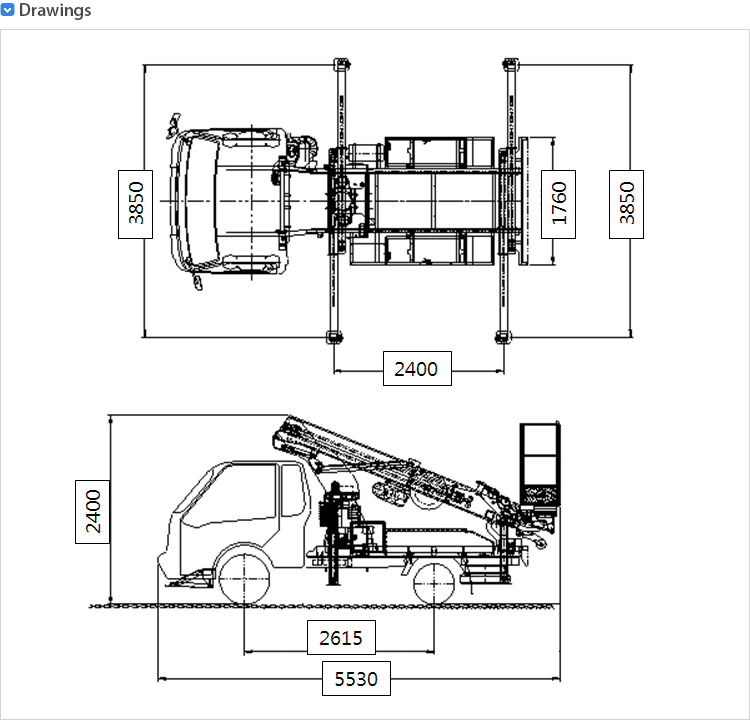

| Size |
L
× W × H |
mm |
5530 × 1760 × 2400 (Equipment : 3700
× 1750 × 2043) |
Axle
distance
|
mm |
2,615 |
Total
weight
|
kg |
3200 (Equipment : 1530kg) |

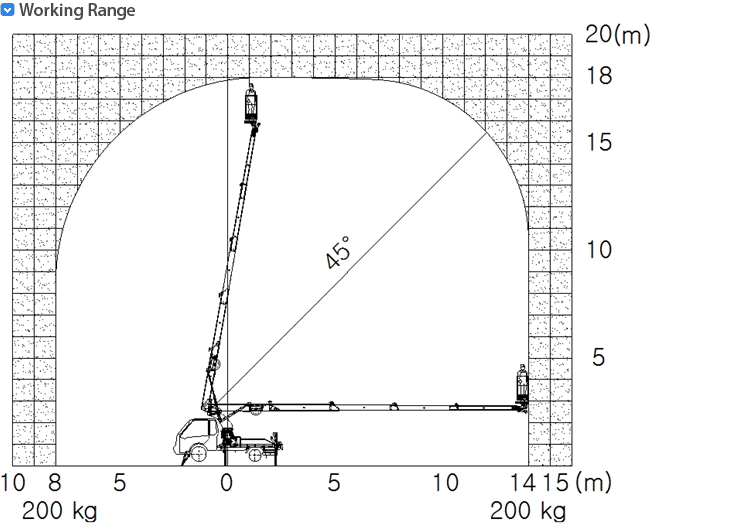

| Max.
working height |
m |
18 (80 Deg.) |
|
Max. working radius |
m |
14 |
| Boom |
Type |
- |
Telescopic pentagon 5 step |
| Telescopic |
- |
1 step hydraulic cylinder (Wire drive) |
| Up&
down angle |
Deg |
-20 ~ 80˚ |
| Slewing |
Angle |
Deg |
Left : 180 Deg, Right : 180 Deg |
| Max.
speed |
m/s |
0.51 |
| Work
platform |
Rated
load
|
Kdf |
200 (Including operator) |
| Material |
- |
Steel or F.R.P |
| Occupancy |
- |
2 persons |
| Leveling |
|
Auto horizontality by Hydraulic Cylinder |
| Angle |
Deg |
360 Deg Rotation continuously |
| Size |
mm |
W950 × L3000 × H1150 |
| Winch(Option) |
Kaf |
200(When full boom extraction) |
Control
method
|
Upper & bottom : Remote
controller and Manual valve |
Power
supply
|
Volt
|
DC 12V |
Control
power
|
Volt
|
DC 12V |
Max.
acceptable Inclination
|
Deg
|
2 |
Emergency
System
|
Emergency Manual Valve
Emergency DC motor pump
Emergency stop button on remote controller |
| Safety
Devices |
Relief Valve |
| Counter Balance
Valve |
| Proportional
Control Valve |
| Auto-leveling
system |
| Pilot Check Valve |
| Vehicle Overturning
Preventer(outrigger sensor) |
| Loading limiter
on platform |
| Inclinometer |
