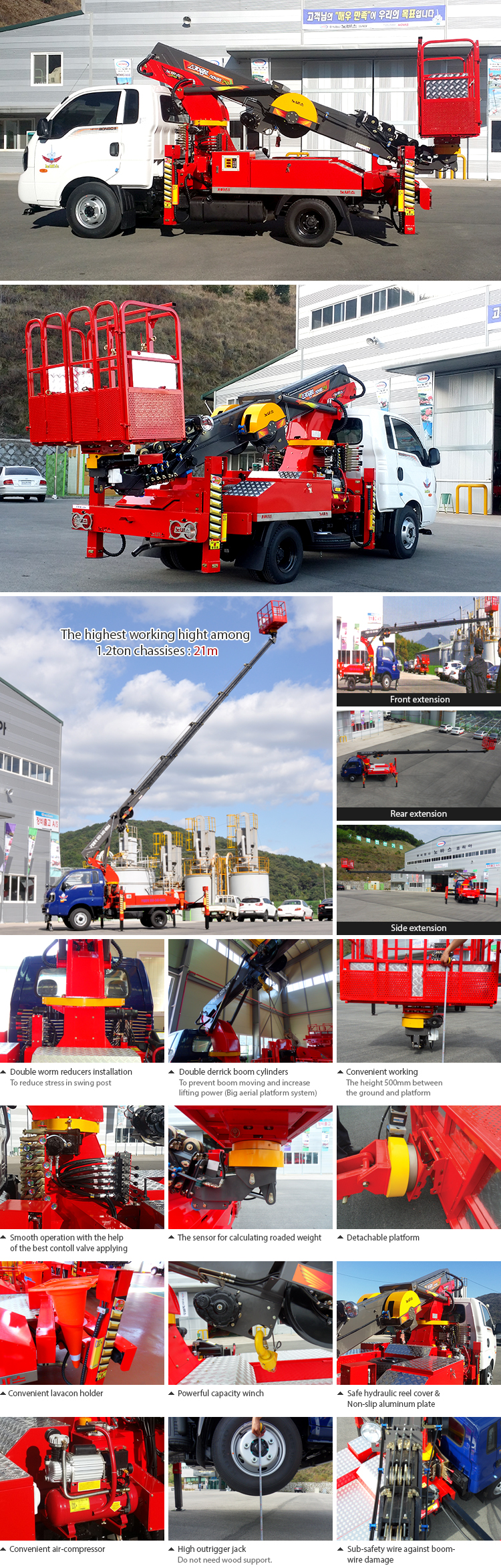

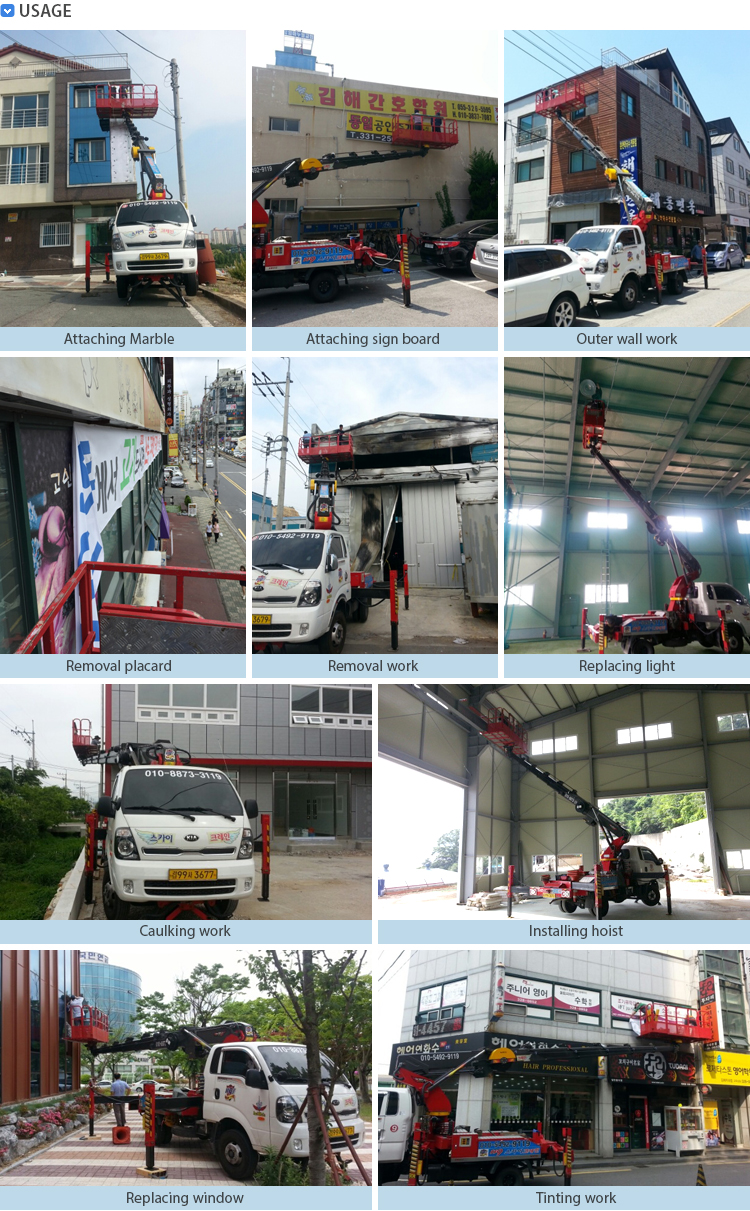

Description
|
Units |
Specification |
Rated load
|
Kgf |
2 persons or 200kg |
Chassis
|
Ton |
Kia Bonggo 1.2ton |

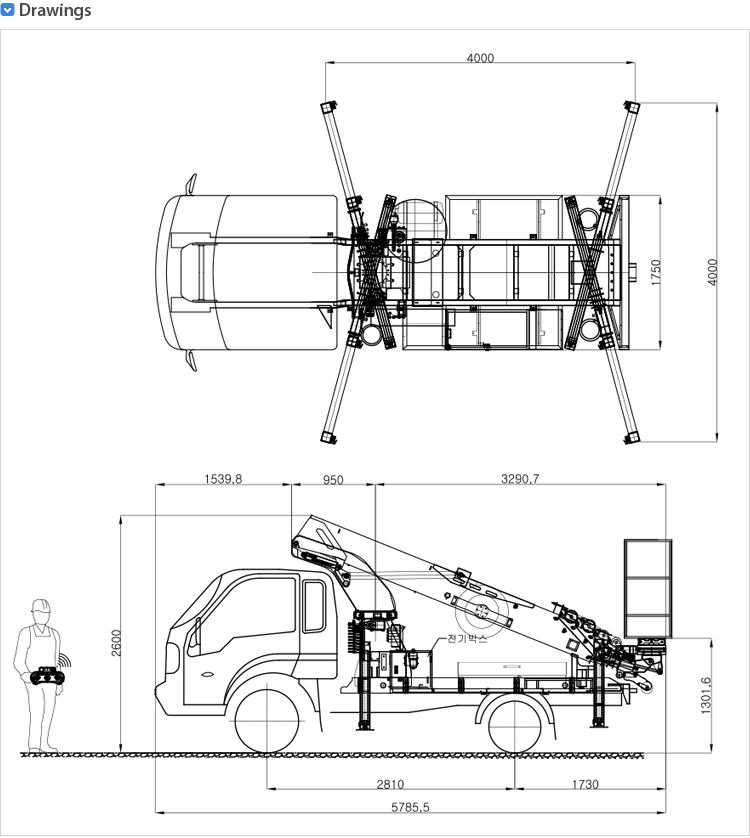

Size |
L
× W × H |
mm |
5930 × 1750 × 2400 |
Axle
distance
|
mm |
2,810 |
Total
weight
|
kg |
3490 (Equipment : 1609kg) |

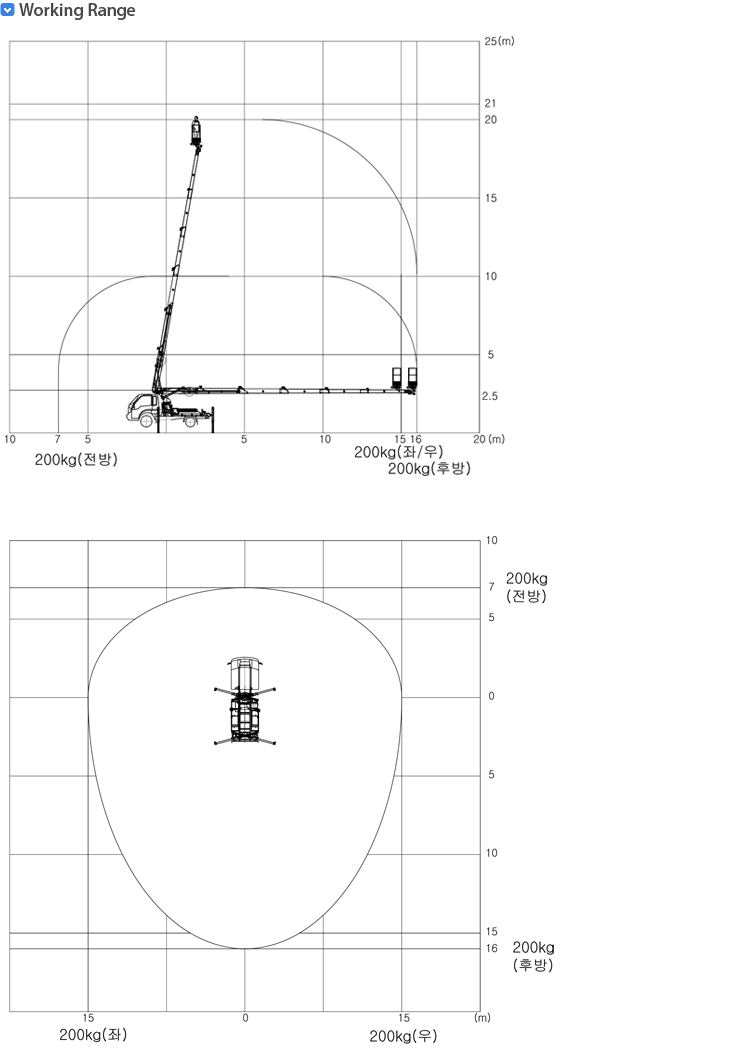

Max.
working height |
m |
21 (80 Deg.) |
Max. working radius |
m |
16 |
Boom |
Type |
- |
Telescopic pentagon 6 step |
Telescopic |
- |
1 step hydraulic cylinder (Wire drive) |
Up
& down angle |
Deg |
-20 ~ 80˚ |
Slewing |
Type |
- |
Hydraulic Motor, Worm Reducer |
Angle |
Deg |
Left : 180 Deg, Right : 180 Deg |
Work
platform |
Rated
load
|
Kdf |
200 (Including operator) |
Material |
- |
Steel or F.R.P |
Occupancy |
- |
2 persons |
Leveling |
|
Auto horizontality by Hydraulic Cylinder |
Angle |
Deg |
360 Deg Rotation continuously |
Size |
mm |
W950 × L3000 × H1150 |
Winch(Option) |
Kaf |
200 (Maximum working radius : 16m) |
Control
method
|
Upper & bottom : Remote
controller and Manual valve |
Power
supply
|
Volt
|
DC 12V |
Control
power
|
Volt
|
DC 12V |
Max.
acceptable Inclination
|
Deg
|
2 |
Emergency
System
|
Emergency Manual Valve
Emergency DC motor pump
Emergency stop button on remote controller |
Safety
Devices |
Relief Valve |
Counter Balance
Valve |
Proportional
Control Valve |
Auto-leveling
system |
Pilot Check Valve |
Vehicle Overturning
Preventer (outrigger sensor) |
Loading limiter
on platform |
Inclinometer |
