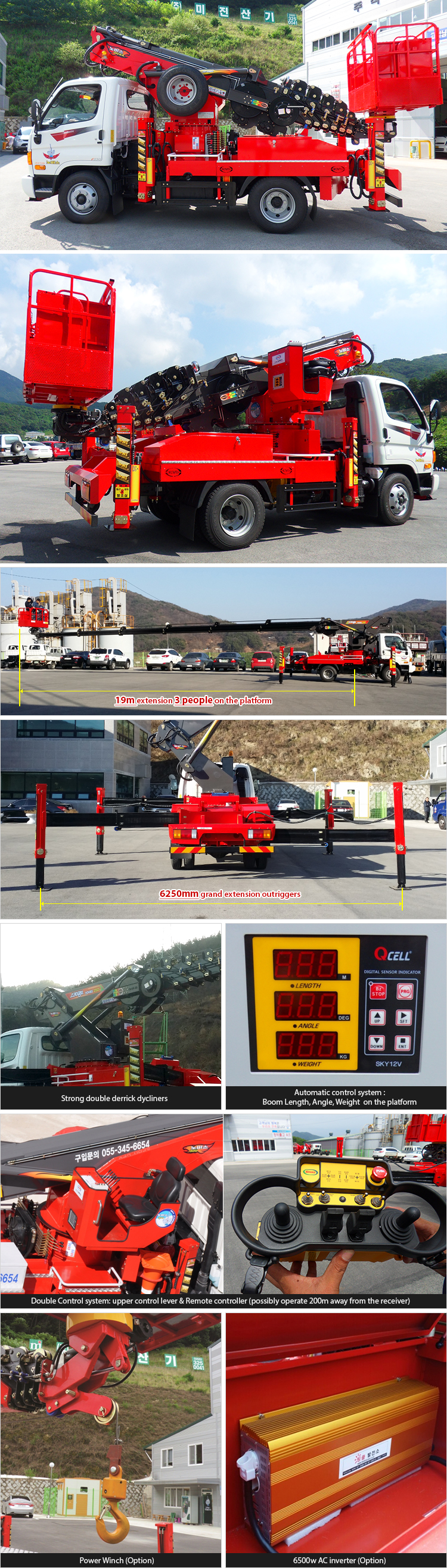

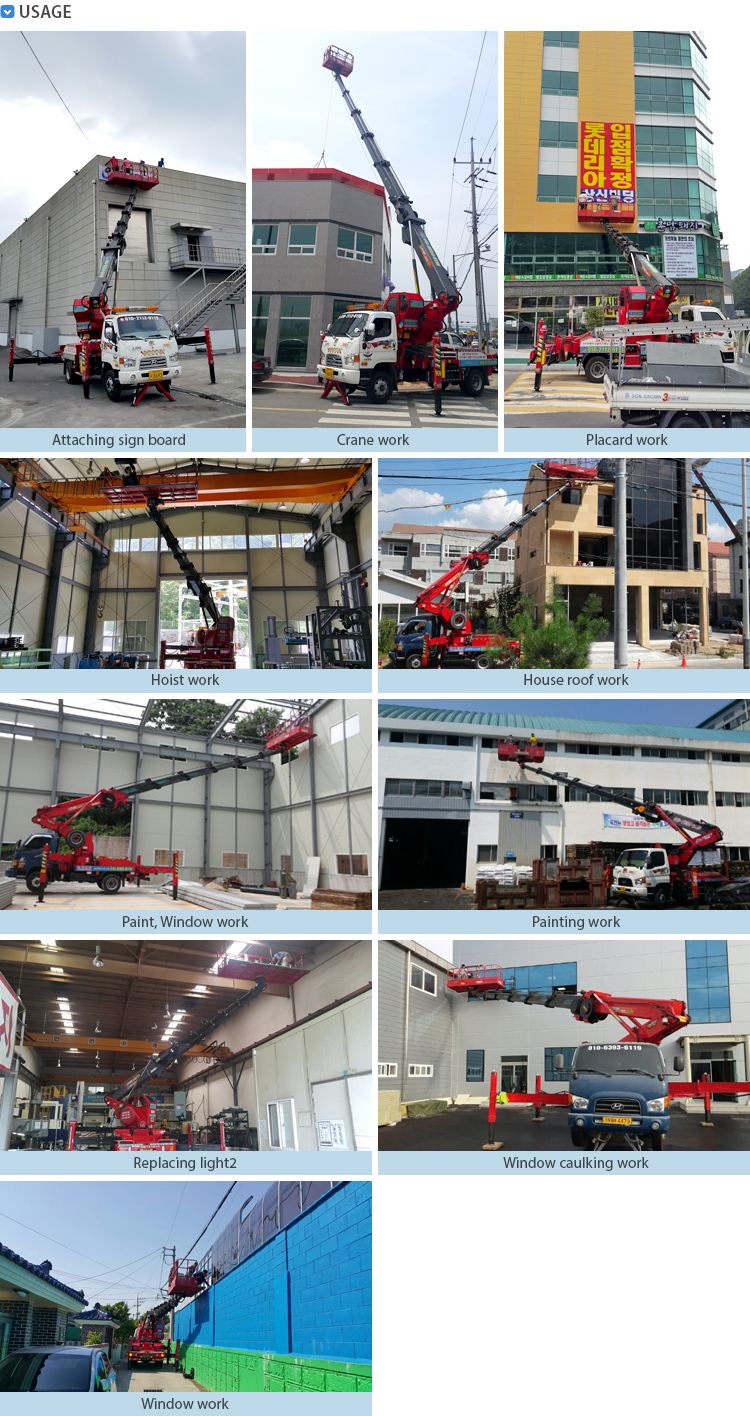

Description
Units Specification
Rated load
Kgf 2 persons or 300kg
Chassis
Ton Hyundai HD78

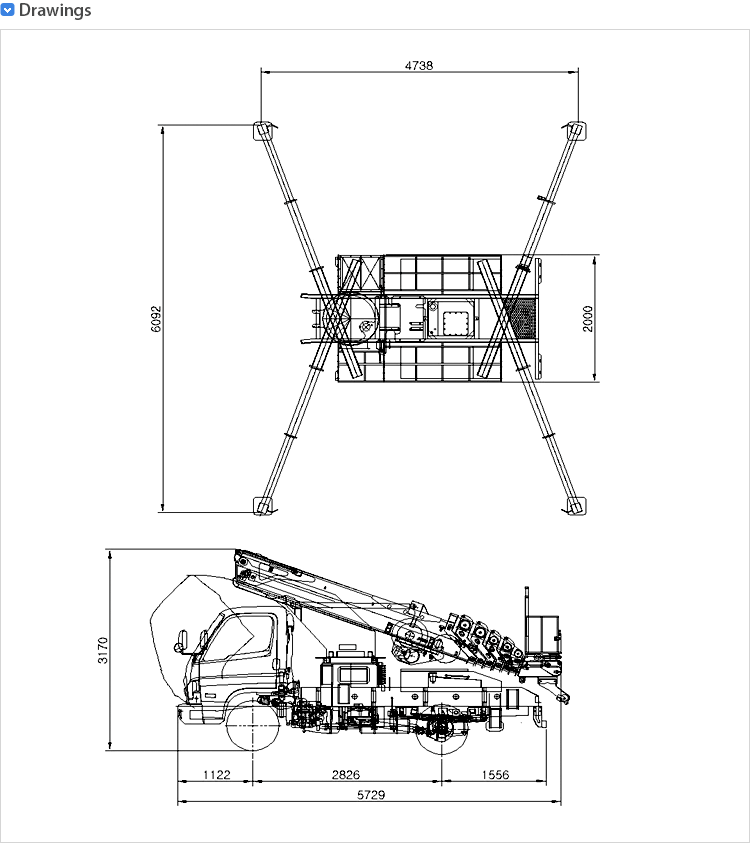

Size L × W × H mm 5729 × 2000 × 3170 (Equipment : 5100 × 2000 × 2860)
Axle distance
mm 2,868
Total weight
kg 7,810 (Equipment : 4460kg)

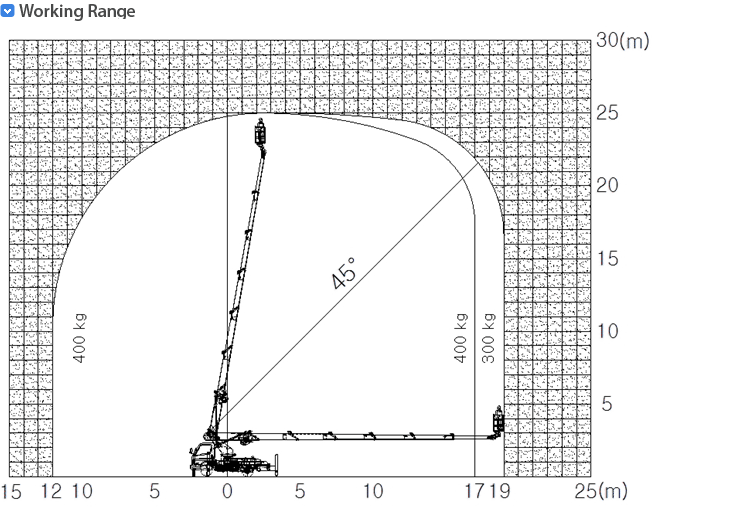

Max. working height m 25 (80 Deg.)
Max. working radius m 19
Boom Type - Telescopic pentagon 7 step
Telescopic - 1 step hydraulic cylinder (Wire drive)
Up & down angle Deg -20 ~ 80˚
Slewing Type - Hydraulic Motor, Worm Reducer, Ring gear with swing
Angle Deg Left : 180 Deg, Right : 180 Deg
Work platform Rated load
Kdf 300 (Including operators)
Material - Steel
Occupancy - 2 persons
Leveling   Auto horizontality by Hydraulic Cylinder
Angle Deg 360 Deg Rotation continuously
Size mm W1100 × L3200 × H1150
Winch(Option) Kaf 300 (Maximum working radius : 20m)
Control method
Upper & bottom : Remote controller and Manual valve
Power supply
Volt
DC 24V
Control power
Volt
DC 24V
Max. acceptable Inclination
Deg
2
Emergency System
Emergency Manual Valve
Emergency DC motor pump
Emergency stop button on remote controller
Safety Devices Relief Valve
Counter Balance Valve
Proportional Control Valve
Auto-leveling system
Pilot Check Valve
Vehicle Overturning Preventer (outrigger sensor)
Loading limiter on platform
Inclinometer
The above specifications are subject to change without notice.
